Our first serial yacht Pure 42 is a semi-custom deck saloon with twin rudders, a protected propeller and, most importantly, a lifting keel that allows a variable draught from 1.2 m to 3 m for shallow water. The lifting keel with T-bomb is continuously adjustable. We manufacture the interior mainly from composite, which means the yacht will be an ultra-light construction. The Pure 42 will be lighter than any other yacht in its class.
Pure 42


Total sail area
99 m²
1065 sqft

LOA
13.80 m
45'3"

Beam
4.20 m
13'8"

Draft min.
1.20 m
3'9"

Draft max.
3.00 m
9'9"

Displacement
9.8 t
21,600 lbs
Request a brochure
Production
Interior design

Specification
LOA | 13.80 m | 45'3" |
Hull length | 12.90 m | 42'3" |
LWL | 12.30 m | 40'0" |
Beam | 4.20 m | 13'8" |
Draft min. keel lifted | 1.20 m | 3'9" |
Draft max. | 3.00 m | 9'9" |
Ballast | 3.3 t | 7,275 lbs |
Displacement | 9.8 t | 21,600 lbs |
Mast length | 18.20 m | 59'7" |
Total sail area | 99 m² | 1065 sqft |
Mainsail | 50 m² | 538 sqft |
Jib | 49 m² | 530 sqft |
Staysail | 24 m² | 260 sqft |
Code Zero option | 110 m² | 1190 sqft |
Gennaker option | 160 m² | 1720 sqft |
Engine Diesel Yanmar | 41,9 kW | 56 hp |
Fuel tank | 2 × 200 l | 2 × 44 gal |
Fresh water | 300 l | 65 gal |
Black water | 120 l | 28 gal |
Cabins | 2 | |
CE Certificate | A | |
Design | Berckemeyer Yacht Design | |
Interior | Pure Yachts |
Page 1 of 1
Layouts

Main deck
Lower deck interior

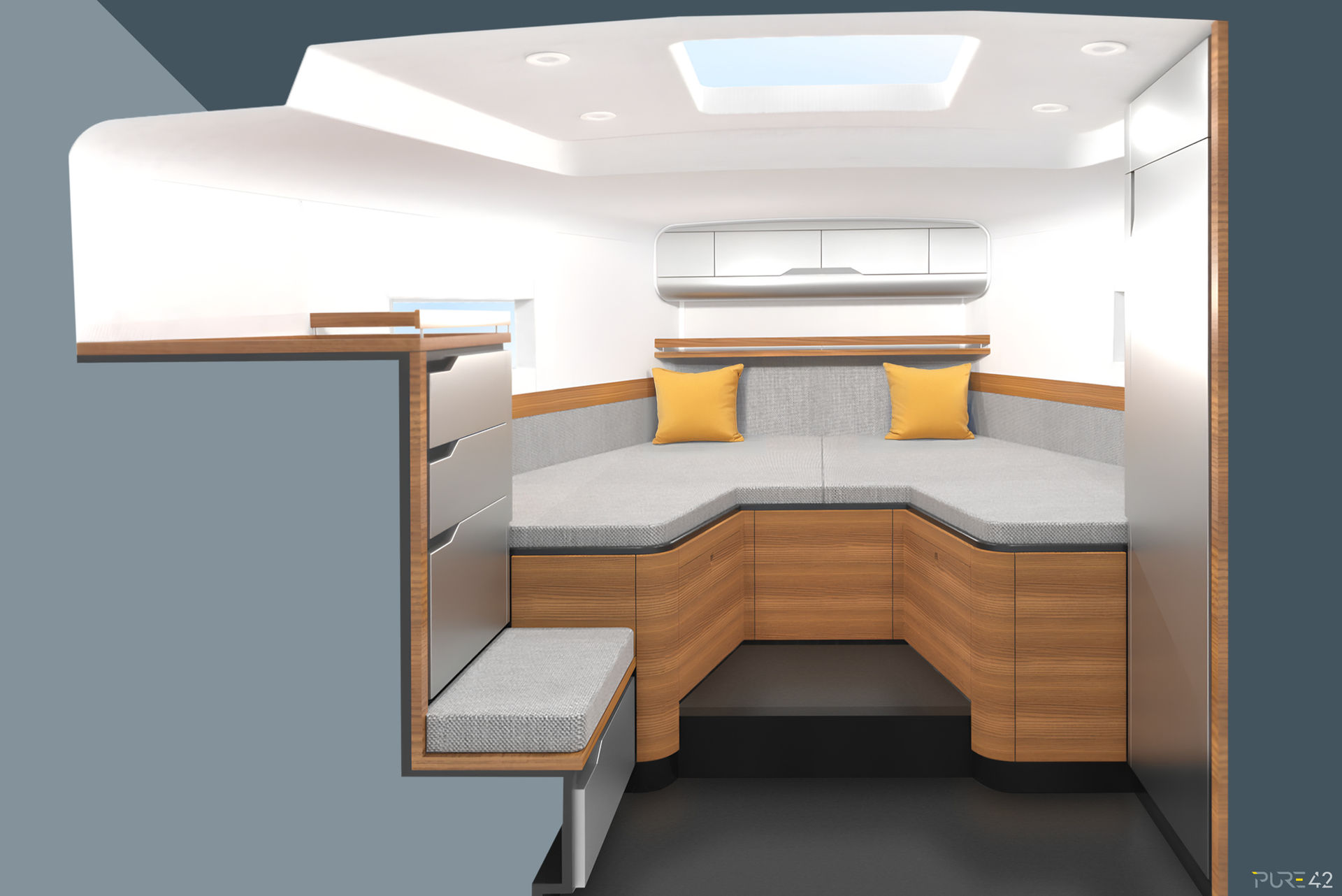

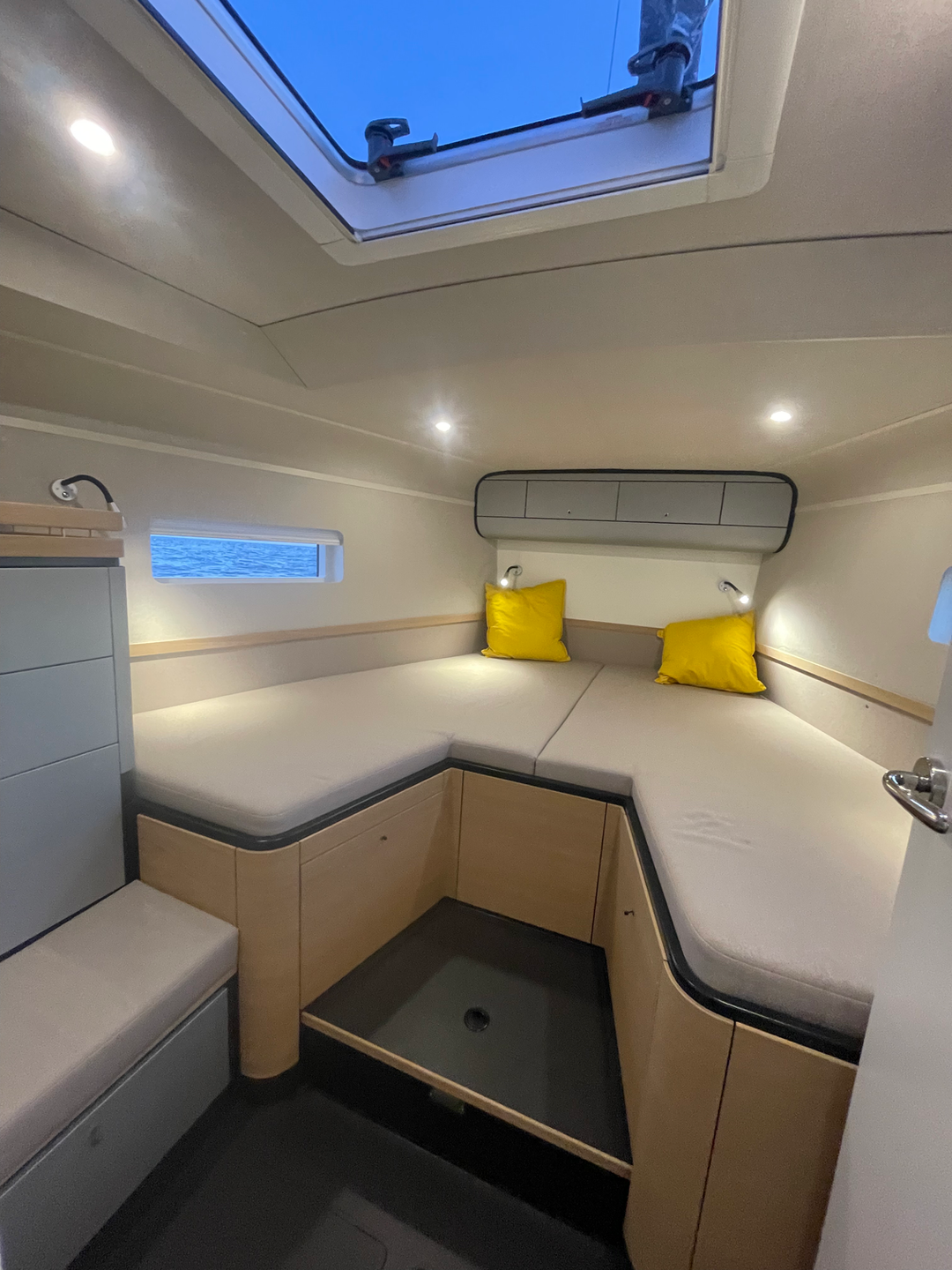

Lower deck interior – view of midship cabin



Exterior design
Brochure
